Franklin Electric BAS-1P Building Automation Starter, 110/230 V, 8.8/16 A, 1 hp, NEMA 1
Franklin Electric BAS-1P Building Automation Starter, 110/230 V, 8.8/16 A, 1 hp, NEMA 1
Part Number: BAS-1P
MPN: BAS-1P
Brand: Franklin Electric
Login for Price & Availability

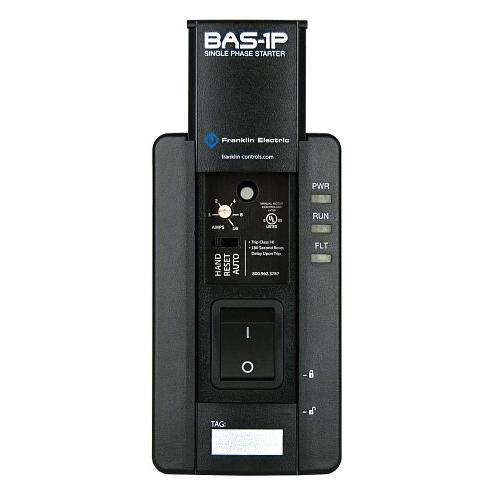

Franklin Electric BAS-1P
The BAS-1P protects single phase motors with an adjustable 1-16A class 10 electronic overload. It includes features like run status verification, a concealed hand/auto switch, lockable on/off switch and system override mode (smoke purge). All of this in a compact design that installs on a single junction box.
Franklin Electric Building Automation Starter, 110/230 V, 8.8/16 A, 1 hp, 50/60 Hz, 1 ph Phase, NEMA Rating: NEMA 1, -20 to 40 deg C, 4.98 in L x 2.81 in W x 2.15 in H
| Amperage Rating | : | 8.8/16 A |
| Dimensions | : | 4.98 in L x 2.81 in W x 2.15 in H |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 1 hp |
| NEMA Rating | : | NEMA 1 |
| Phase | : | 1 ph |
| Temperature Rating | : | -20 to 40 deg C |
| Voltage Rating | : | 110/230 V |
- On/off disconnect switch with recessed hand/auto modes
- LED indicator lights for power, run and fault
- Voltage and dry inputs for auto run command
- System override mode (fireman's, occupancy or manual)
- Wide range Class 10 electronic overload prevents ordering confusion and eliminates call backs due to mis-sized heaters
- Standard single-gang box installation
- Advanced protective features including anti-cycling, manual reset, etc
- High reliability
- Heavy-duty motor-rated switch and control relay
- No thermal elements to fail
-
