nVent CADDY CRLB37EG Rod Lock Beam Clamp, 3/8 in Rod, 1/8 to 3/8 in Thick Flange, 250 lb Load, Iron, Electro-Galvanized
nVent CADDY CRLB37EG Rod Lock Beam Clamp, 3/8 in Rod, 1/8 to 3/8 in Thick Flange, 250 lb Load, Iron, Electro-Galvanized
Part Number: CRLB37EG
MPN: CRLB37EG
Brand: nVent CADDY
Login for Price & Availability
nVent CADDY CRLB37EG
nVent CADDY Rod Lock Beam Clamp, 3/8 in Rod, 1/8 to 3/8 in Flange Thickness, 250 lb Load, Iron, Finish: Electro-Galvanized, 2.06 in Overall Length, 1 in Overall Width, 1-3/16 in Overall Height
| Finish | : | Electro-Galvanized |
| Flange Thickness | : | 1/8 to 3/8 in |
| Load Capacity | : | 250 lb |
| Material | : | Iron |
| Overall Height | : | 1-3/16 in |
| Overall Length | : | 2.06 in |
| Overall Width | : | 1 in |
| Rod Size | : | 3/8 in |
- Pre-fabricated assemblies easily lift and lock into place, helping to save time and money

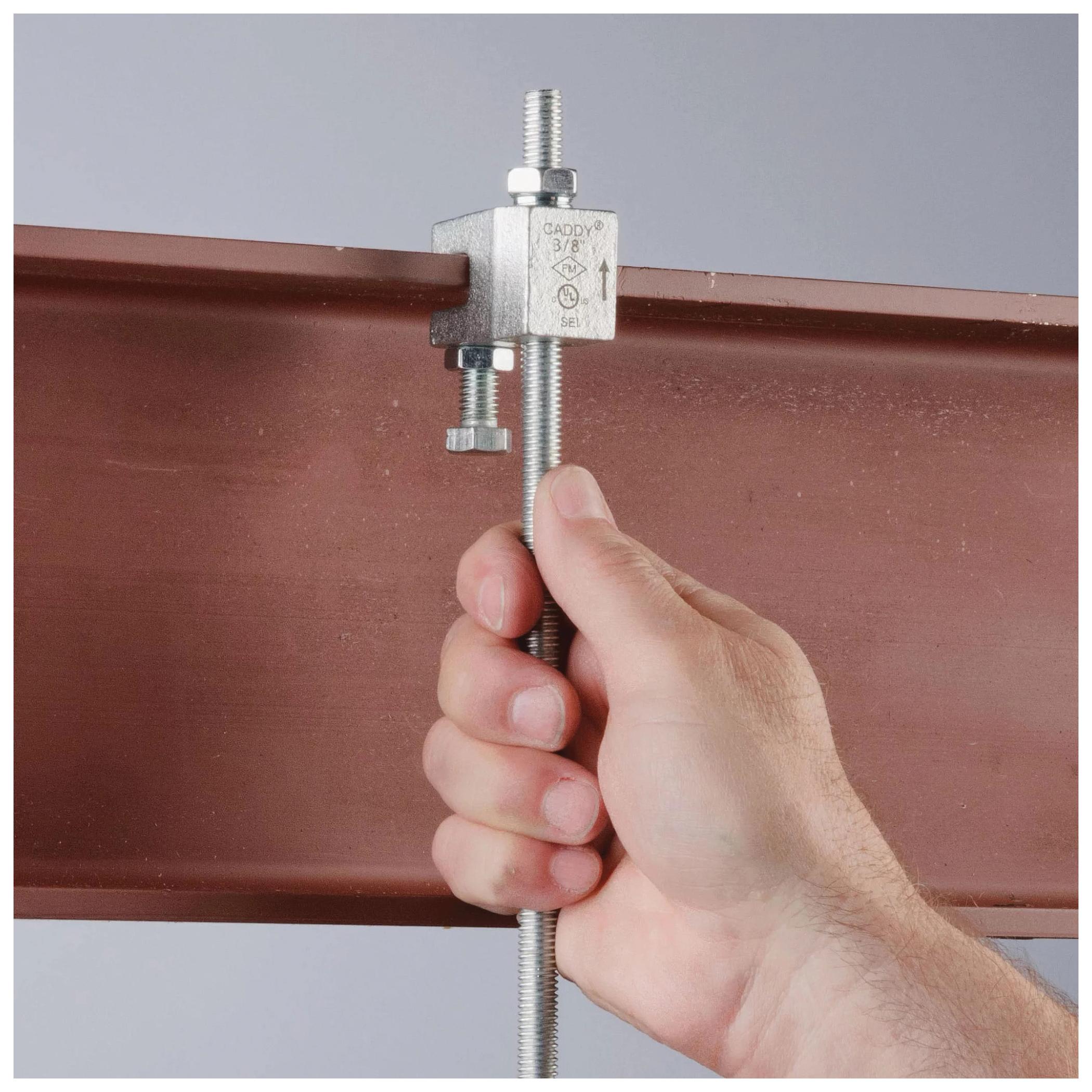

- Easy push-to-install design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position

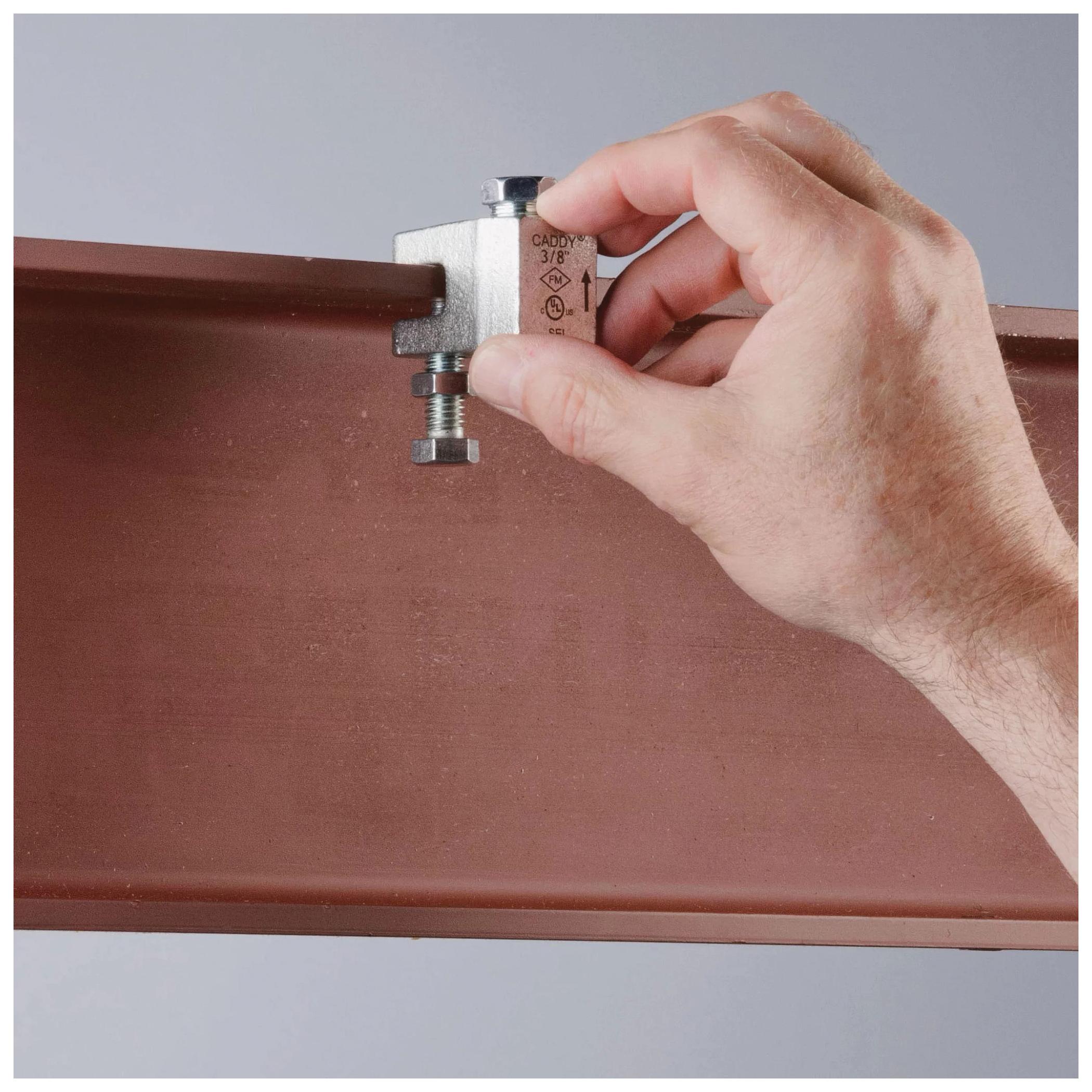

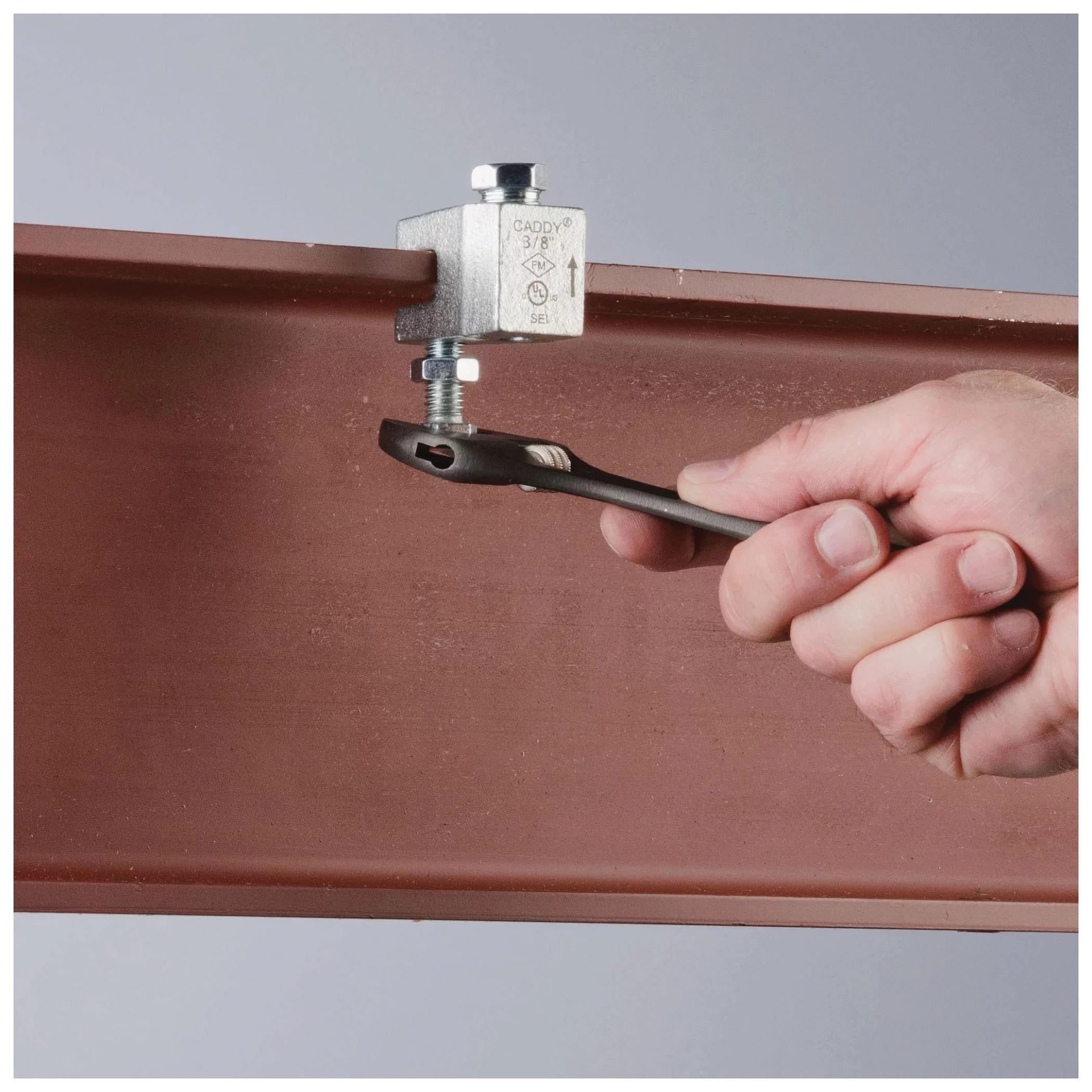

- Lock nut can be finger tightened, locking the rod in place
- Works with slightly damaged threads and minor burrs on the threaded rod
- Conforms with Federal Specification WW-H-171 (Type 23)
- Manufacturers Standardization Society ANSI®/MSS-SP-58 (Type 19 and 23)
