QMARK® MUH Series MUH0521 Unit Heater, 208 to 240 V, 21 A, 5 kW, 12600 to 17000 Btu/hr BTU, 1 ph, 3 ph-Phase, Steel
QMARK® MUH Series MUH0521 Unit Heater, 208 to 240 V, 21 A, 5 kW, 12600 to 17000 Btu/hr BTU, 1 ph, 3 ph-Phase, Steel
Part Number: MUH-0521
MPN: MUH0521
Brand: QMARK®
Login for Price & Availability
QMARK® MUH0521

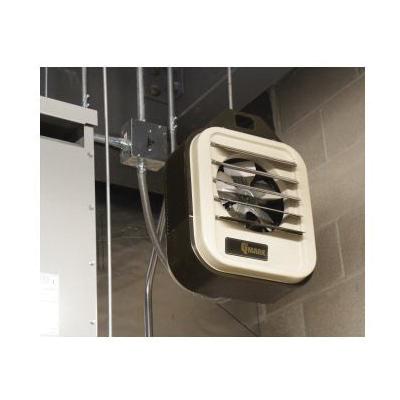

This rugged unit heater works well in industrial settings. Install it in factories, warehouses, garages, stairwells, power stations or mechanical rooms. Its powerful output capacity even makes it suitable for heating your loading dock or other indoor/outdoor transition spaces.
QMARK® Unit Heater, Series: MUH Series, 12600 to 17000 Btu/hr, 208 to 240 V, 21 A, 800 fpm, 350 cfm CFM Rating, 1/100 hp HP Rating, 5 kW, 1 ph, 3 ph, 1600 rpm Rotational Speed, Steel, Neutral Gray/Statuary Bronze, Polyester Powder-Coated, 45 deg F, 16 in H x 14 in W x 7-1/2 in D
| Amperage Rating | : | 18.0/21.0 A |
| BTU Rating | : | 12600 to 17000 Btu/hr |
| BTU/HR | : | 12,600/17,000 btu/hr |
| CFM Rating | : | 350 cfm |
| CFM | : | 350 CFM |
| Color | : | Neutral Gray/Statuary Bronze |
| Control Volts | : | 208/240 V |
| Dimensions | : | 16 in H x 14 in W x 7-1/2 in D |
| FPM | : | 800 FPM |
| Finish | : | Polyester Powder-Coated |
| Flow Rate | : | 800 fpm |
| HP Rating | : | 1/100 hp |
| Horizontal Throw | : | 12 ft |
| KW | : | 5 kW |
| Material | : | Steel |
| Model | : | MUH-0521 |
| Motor HP | : | 1/100 hp |
| Phase | : | 1-3 ph |
| Power Rating | : | 5 kW |
| Rotational Speed | : | 1600 rpm |
| Series | : | MUH Series |
| Temperature Rating | : | 45 deg F |
| Voltage Rating | : | 208/240 V |
| Voltage | : | 208/240 V |
| Weight | : | 27 lbs. |
| Wire Size | : | 10 AWG |
| ��T (��F) | : | 45 ��F |
- Wide range of optional control kits are field-installable, increasing the unit's adaptability to specification market
- Heavy gauge die-formed steel housing, two-toned, smartly-styled with stainless steel louvers
- Advanced pull through air flow design draws air across heating element for even air distribution and cooler element operation
- Specially designed venturi outlet to meet required additional air throw in vertical position
- Branch circuit fusing, when required
- Completely enclosed fan motor
- Aluminum-finned, copper clad steel sheath heating element has longer useful life, because of cooler sheath temperature and faster heat dissipation
- Aluminum finned, copper clad steel sheath heating element extends life due to cooler sheath temperature and faster heat dissipation
- Automatic reset linear thermal cutout, capillary-type, provides protection over entire length of element areas
- No piping flues, valves or traps needed for installation
- Individually adjustable louvers to direct air flow
- Ruggedly built, yet lighter weight for easier installation, no piping flutes, valves or traps
- 8 in horizontal, 9 in vertical maximum effective mounting height
