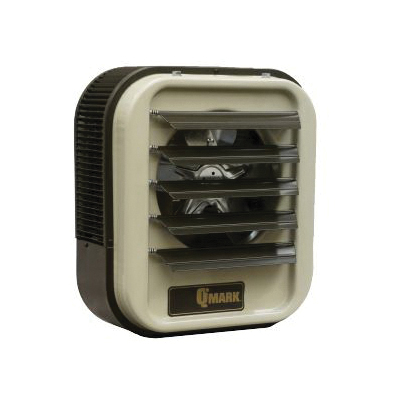

QMARK® MUH Series MUH0581 Unit Heater, 208 V, 24 A, 5 kW, 17000 Btu/hr BTU, 1 ph, 3 ph-Phase, Steel

This rugged unit heater works well in industrial settings. Install it in factories, warehouses, garages, stairwells, power stations or mechanical rooms. Its powerful output capacity even makes it suitable for heating your loading dock or other indoor/outdoor transition spaces.

QMARK® Unit Heater, Series: MUH Series, 17000 Btu/hr, 208 V, 24 A, 350 cfm CFM Rating, 5 kW, 1 ph, 3 ph, 60 Hz, 9 ft Mounting Height, 12 ft Heat Throw, Steel, Neutral Gray, Polyester Powder-Coated, 16 in H x 14 in W x 7-1/2 in D

• Wide range of optional control kits are field-installable, increasing the unit's adaptability to specification market
• Heavy gauge die-formed steel housing, two-toned, smartly-styled with stainless steel louvers
• Advanced pull through air flow design draws air across heating element for even air distribution and cooler element operation
• Specially designed venturi outlet to meet required additional air throw in vertical position
• Branch circuit fusing, when required
• Completely enclosed fan motor

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/QMARK_MUH104_Catalog.pdf
