QMARK® MUH Series MUH154 Unit Heater, 480 V, 18 A, 15 kW, 51200 Btu/hr BTU, 3 ph-Phase, Steel
QMARK® MUH Series MUH154 Unit Heater, 480 V, 18 A, 15 kW, 51200 Btu/hr BTU, 3 ph-Phase, Steel
Part Number: MUH-154
MPN: MUH154
Brand: QMARK®
Login for Price & Availability

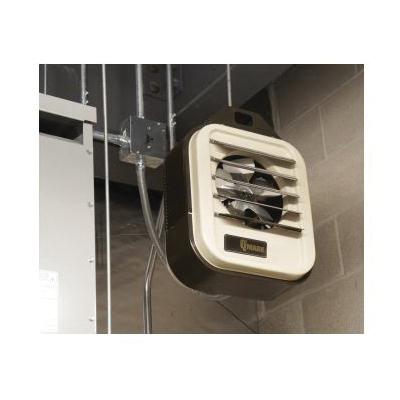

QMARK® MUH154
This rugged unit heater works well in industrial settings. Install it in factories, warehouses, garages, stairwells, power stations or mechanical rooms. Its powerful output capacity even makes it suitable for heating your loading dock or other indoor/outdoor transition spaces.
QMARK® Unit Heater, Series: MUH Series, 51200 Btu/hr, 480 V, 18 A, 1640 fpm, 910 cfm CFM Rating, 1/20 hp HP Rating, 15 kW, 3 ph, 1530 rpm Rotational Speed, Steel, Neutral Gray/Statuary Bronze, Polyester Powder-Coated, 52 deg F, 21-3/4 in H x 19 in W x 12-3/4 in D
| Amperage Rating | : | 51.2 A |
| BTU Rating | : | 51200 Btu/hr |
| BTU/HR | : | 51,200 btu/hr |
| CFM Rating | : | 910 cfm |
| CFM | : | 910 CFM |
| Color | : | Neutral Gray/Statuary Bronze |
| Control Volts | : | 24 V |
| Dimensions | : | 21-3/4 in H x 19 in W x 12-3/4 in D |
| FPM | : | 1640 FPM |
| Finish | : | Polyester Powder-Coated |
| Flow Rate | : | 1640 fpm |
| HP Rating | : | 1/20 hp |
| Horizontal Throw | : | 35 ft |
| KW | : | 15 kW |
| Material | : | Steel |
| Model | : | MUH-154 |
| Motor HP | : | 1/20 hp |
| Phase | : | 3 ph |
| Power Rating | : | 15 kW |
| Rotational Speed | : | 1530 rpm |
| Series | : | MUH Series |
| Temperature Rating | : | 52 deg F |
| Voltage Rating | : | 480 V |
| Voltage | : | 480 V |
| Weight | : | 53 lbs. |
| Wire Size | : | 10 AWG |
| ��T (��F) | : | 52 ��F |
- Wide range of optional control kits are field-installable, increasing the unit's adaptability to specification market
- Heavy gauge die-formed steel housing, two-toned, smartly-styled with stainless steel louvers
- Advanced pull through air flow design draws air across heating element for even air distribution and cooler element operation
- Specially designed venturi outlet to meet required additional air throw in vertical position
- Branch circuit fusing, when required
- Completely enclosed fan motor
- Aluminum-finned, copper clad steel sheath heating element has longer useful life, because of cooler sheath temperature and faster heat dissipation
- Aluminum finned, copper clad steel sheath heating element extends life due to cooler sheath temperature and faster heat dissipation
- Automatic reset linear thermal cutout, capillary-type, provides protection over entire length of element areas
- No piping flues, valves or traps needed for installation
- Individually adjustable louvers to direct air flow
- Ruggedly built, yet lighter weight for easier installation, no piping flutes, valves or traps
- 11 in horizontal, 20 in vertical maximum effective mounting height
