Titus 50F 22X10 50F 22X10

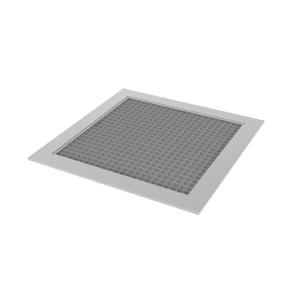

Titus 50F Series 50F 22X10 Eggcrate Return Grille, 22 x 10 in, Aluminum, White

Titus 50F Series 50F 22X10 Eggcrate Return Grille, 22 x 10 in, Aluminum, White

Part Number: 50F 22X10

MPN: 50F 22X10

Brand: Titus

Login for Price & Availability

Add to cart

Add to favorites
Share Email Print
  1. pin-int

Titus 50F 22X10

Titus Egg crate grilles have the highest free area of any return grille. These grilles are available with aluminum border and aluminum grid; steel border and aluminum grid; or entirely stainless steel construction. Offered in 1/2 x 1/2 x 1/2 in, 1/2 x 1/2 x 1 in or 1 x 1 x 1in core sizes. Also available as a filtered return.

Titus Eggcrate Return Grille, 50F Series, 22 x 10 in, Surface Mounting, 2-1/2 in Length, 23-3/4 in Width, 11-3/4 in Height, Aluminum, White

Color      :      White
Core Type      :      1/2 x 1/2 x 1/2 in
Duct Size      :      22 x 10 in
Frame Type      :      Surface Mount
Height      :      11-3/4 in
Length      :      2-1/2 in
Material      :      Aluminum
Module Size      :      NA
Mounting Type      :      Lay-In
Series      :      50F Series
Size      :      22 x 10 in
Width      :      23-3/4 in
  • #8 x 1-1/4 in Philips flat head sheet metal screws painted white
  • Insect and debris screens are not available when dampers are fitted
  • Optional opposed blade damper has screwdriver adjustment accessible through face of grille
  • All dimensions are +/- 2 in
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Titus_50F_24X24_Catalog.pdf
  • Full Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Titus_50F_24X24_Full_Engineering_Drawing.pdf
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Titus_50F_08X08_Specification_Sheet.pdf
  • Submittal https://assets.unilogcorp.com/267/ITEM/DOC/Titus_50F_08X08_Submittal.pdf
