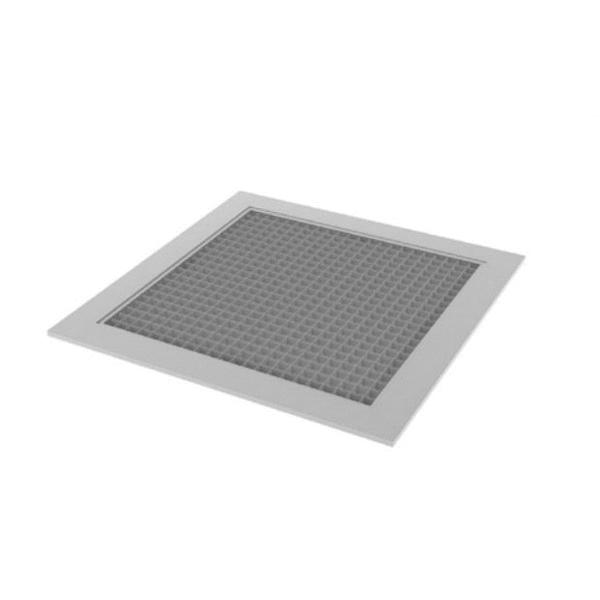

Titus 50F Series 50F-24X24 Eggcrate Return Grille, 24 x 24 in, Aluminum, White
Titus 50F Series 50F-24X24 Eggcrate Return Grille, 24 x 24 in, Aluminum, White
Part Number: 50F 24X24
MPN: 50F-24X24
Brand: Titus
Login for Price & Availability
Titus 50F-24X24
Titus Egg crate grilles have the highest free area of any return grille. These grilles are available with aluminum border and aluminum grid; steel border and aluminum grid; or entirely stainless steel construction. Offered in 1/2 x 1/2 x 1/2 in, 1/2 x 1/2 x 1 in or 1 x 1 x 1in core sizes. Also available as a filtered return.
Titus Eggcrate Return Grille, 50F Series, 24 x 24 in, Surface Mounting, 2-1/2 in Length, 25-3/4 in Width, 25-3/4 in Height, Aluminum, White
| Color | : | White |
| Core Type | : | 1/2 x 1/2 x 1/2 in |
| Duct Size | : | 24 x 24 in |
| Frame Type | : | Surface Mount |
| Height | : | 25-3/4 in |
| Length | : | 2-1/2 in |
| Material | : | Aluminum |
| Module Size | : | NA |
| Mounting Type | : | Surface |
| Series | : | 50F Series |
| Size | : | 24 x 24 in |
| Width | : | 25-3/4 in |
- #8 x 1-1/4 in Philips flat head sheet metal screws painted white
- Insect and debris screens are not available when dampers are fitted
- Optional opposed blade damper has screwdriver adjustment accessible through face of grille
- All dimensions are +/- 2 in
